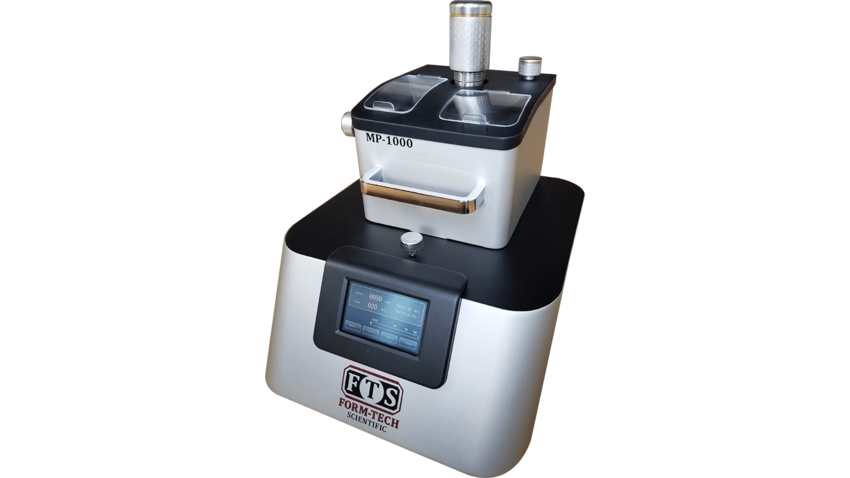

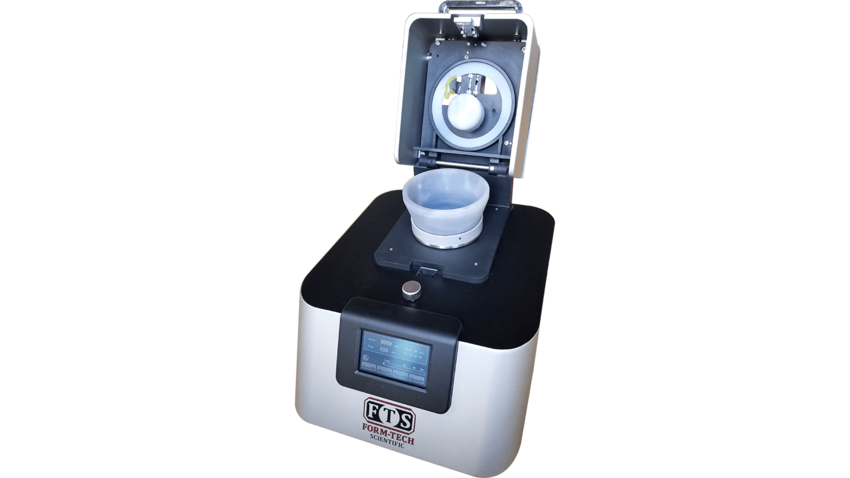

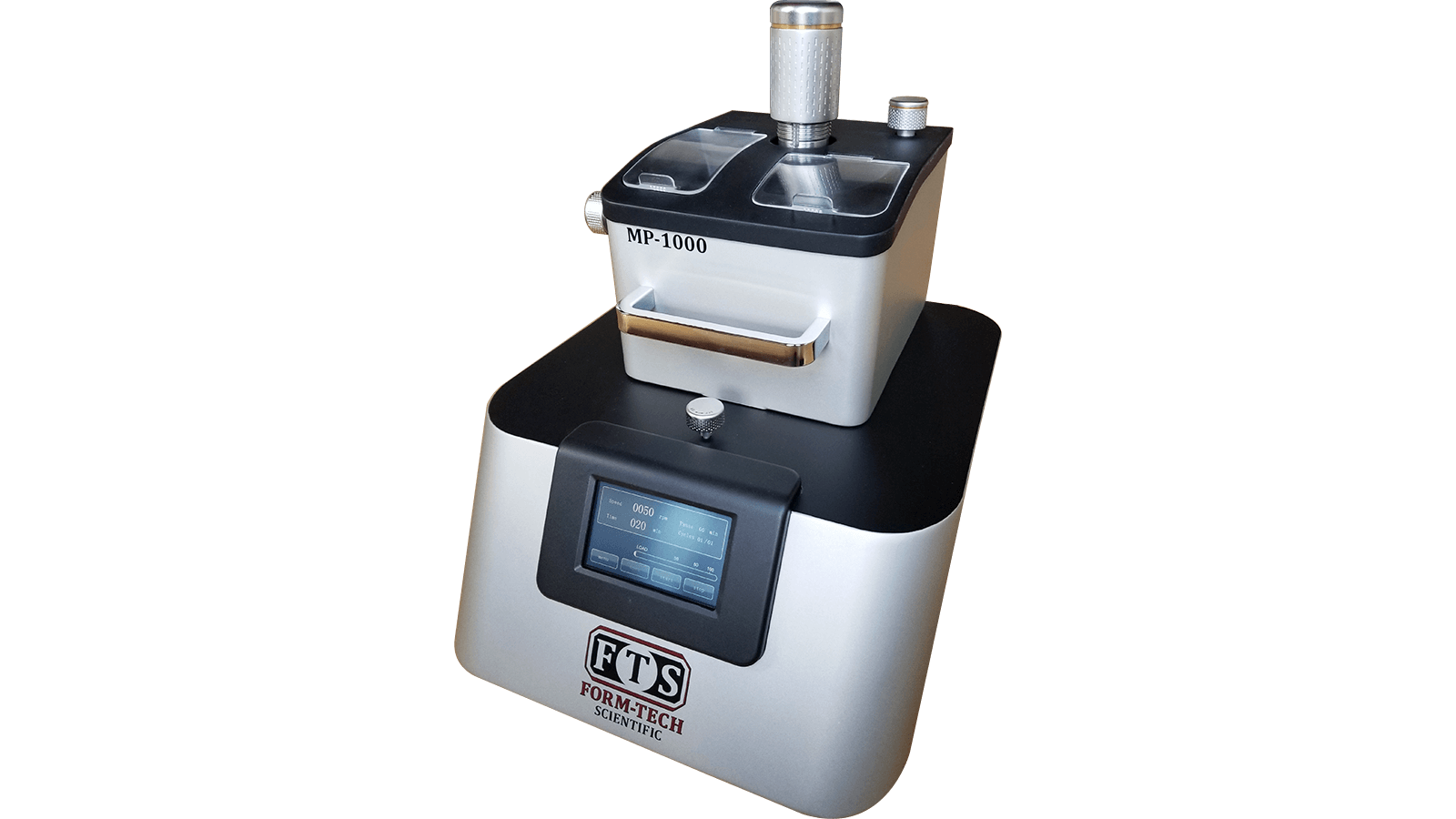

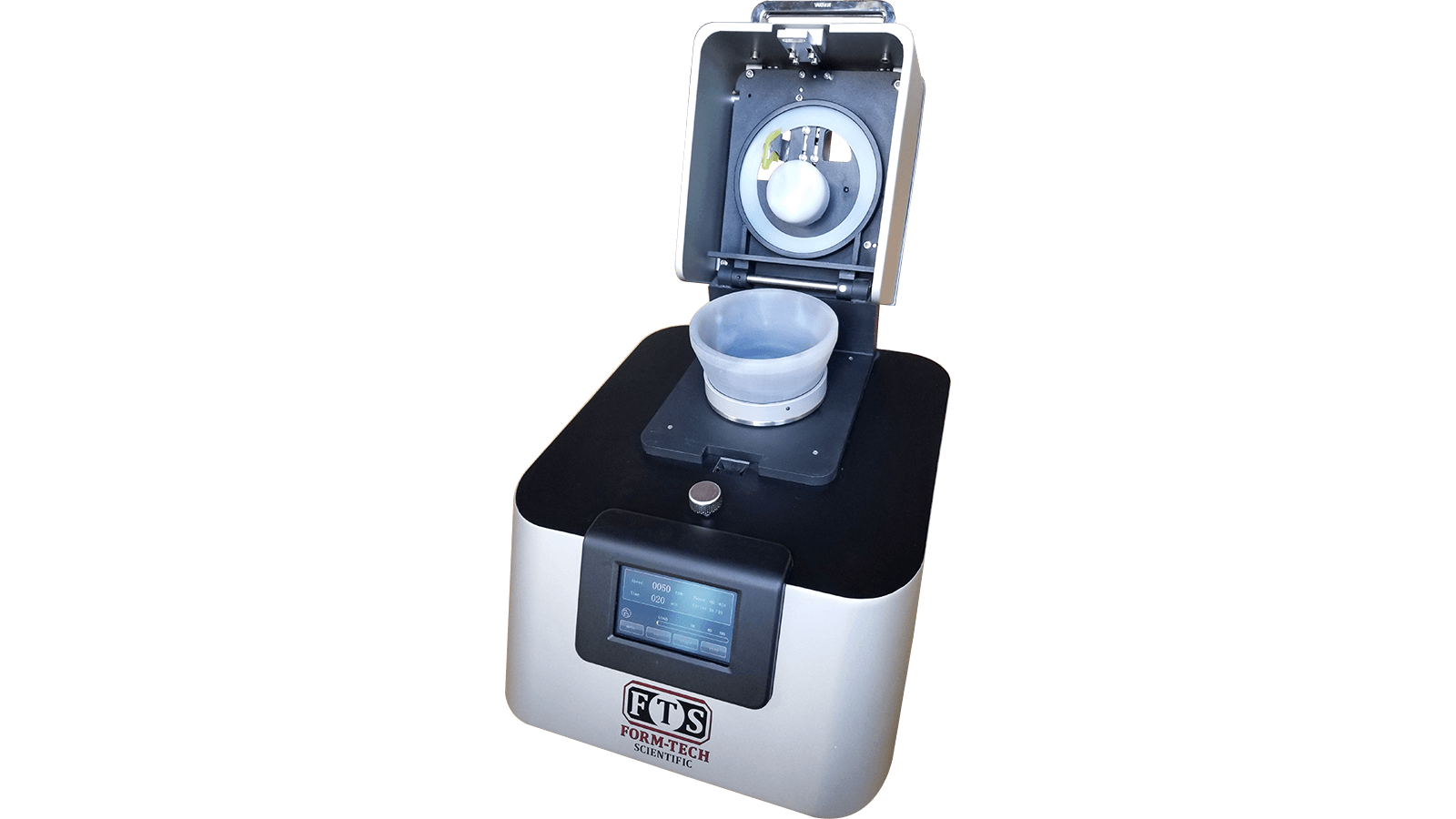

MP-1000 Mortar & Pestle Grinder
Technical Specifications
Technical Specifications
| Grinding stations | 1 | ||
| Grinding speed | 50 - 130 rpm | ||
| Grinding time | 1 - 999 min | ||
| Storable grinding programs | 9 | ||
| Mortar & pestle materials | Stainless steel | Hardened steel | Zirconia |
| Tungsten carbide | Agate | Alumina | |
| Sample capacity | 10 - 200 ml | ||
| Sample feed size | < 10 mm | ||
| Final particle size | < 5 μm | ||
| Power input | 110/220 V, 50/60 Hz | ||
| Rated power | 230 W |
Overview
The MP-1000 is an automatic mortar & pestle grinder that is used to grind and homogenize a wide range of samples in a dry or wet state. It is highly effective for samples that are oily or pasty and offers good flexibility with respect to batch size, accommodating small or large sample quantities. The MP-1000 is especially well suited for applications with temperature sensitive samples, as it generates very little heat.
Key Information
|
Mortar & pestle materials |
✓Stainless steel |
✓Hardened steel |
✓Zirconia |
| ✓Tungsten carbide | ✓Alumina | ✓Agate | |
| Sample capacity* | 10 - 200 ml | ||
| Maximum grinding time | 999 min | ||
| Sample feed size* | < 10 mm | ||
| Final particle* | < 5 µm |
*Results are affected by and will vary depending on the physical properties of the material and machine parameters.
✓ Wet, dry or cryogenic grinding
✓ Quick and easy to clean
✓ Minimal heat generation - Highly effective for temperature sensitive samples
✓ Adjustable speed
✓ Adjustable pestle/grinding pressure
