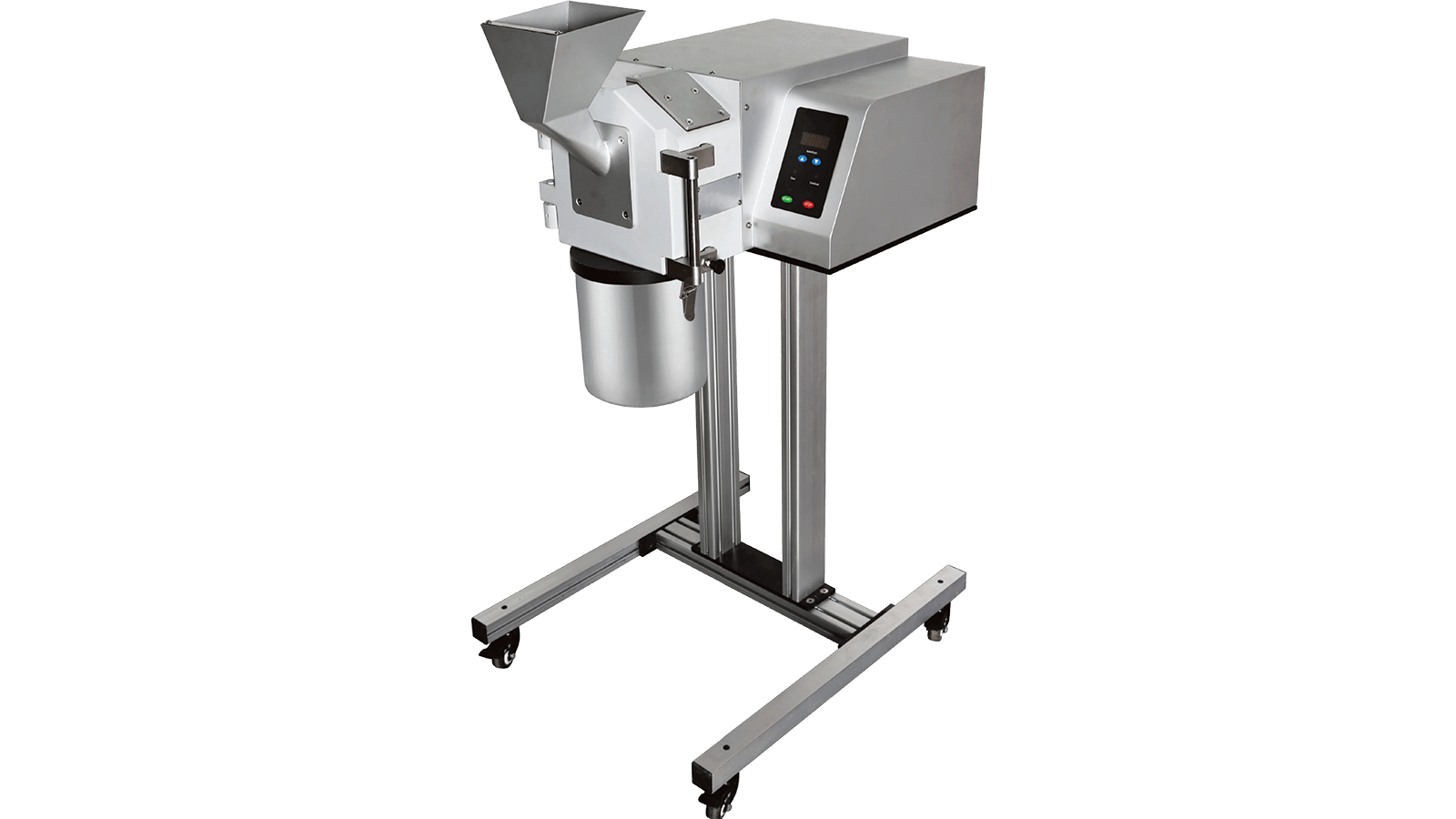

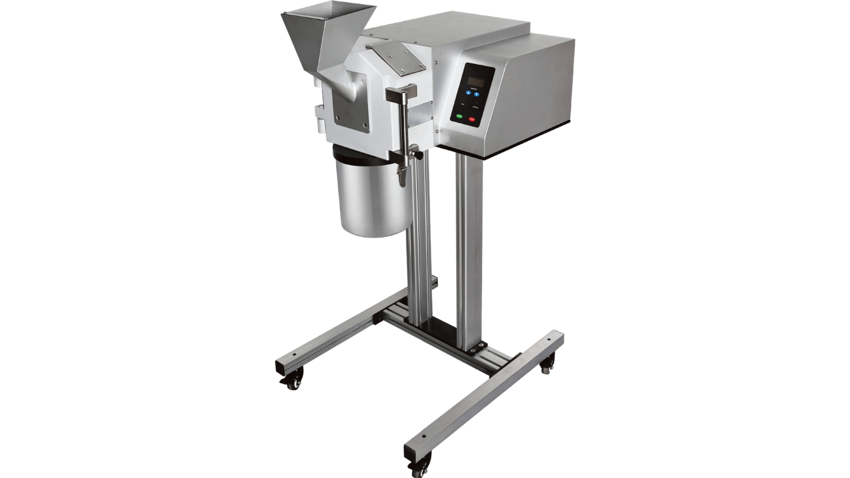

MF-1000 Multi Function Mill
Technical Specifications
Technical Specifications
| Grinding stations | 1 |
| Grinding speed | 500 - 4000 rpm |
| Available sieve sizes | 0.12, 0.2, 0.25, 0.5, 1, 2, 3, 4, 6, 8, 10 mm |
| Available jar materials | Stainless steel, hardened steel |
| Sample capacity | Variable - Continuous feed |
| Sample feed size | < 25 mm |
| Final particle size | < 100 μm |
| Dimensions | 590 x 705 x 1400 mm |
| Weight | ~ 120 kg |
| Power input | 110/220 V, 50/60 Hz |
| Rated power | 1.5 kW |
Overview
The MF-1000 is an innovative multi functional mill that combines the functionality of a Cutting mill, Cross Beater mill, and Rotor Beater mill into a single dynamic machine. Integrating these three different functionalities saves money, space, and provides access to a wide range of materials. This includes soft, tough fibrous, elastic, hard, and brittle samples. No other cutting/ rotor mill can match the value or flexibility offered by the MF-1000.
Key Information
| Sample capacity* | Variable - Continuous feed | |
| Sample feed size* | < 25 mm | |
| Final particle size* | < 100 µm | |
*Results are affected by and will vary depending on the physical properties of the material and machine parameters.
✓ Batch or continuous operation
✓ Modular design - Suitable for a wide range of applications
✓ Exchangeable sieves allow for particle size selection
✓ Adjustable speed
✓ Many grinding materials to fit any application
