The FlackTek™ - Grinding
About The Technology
The Machine

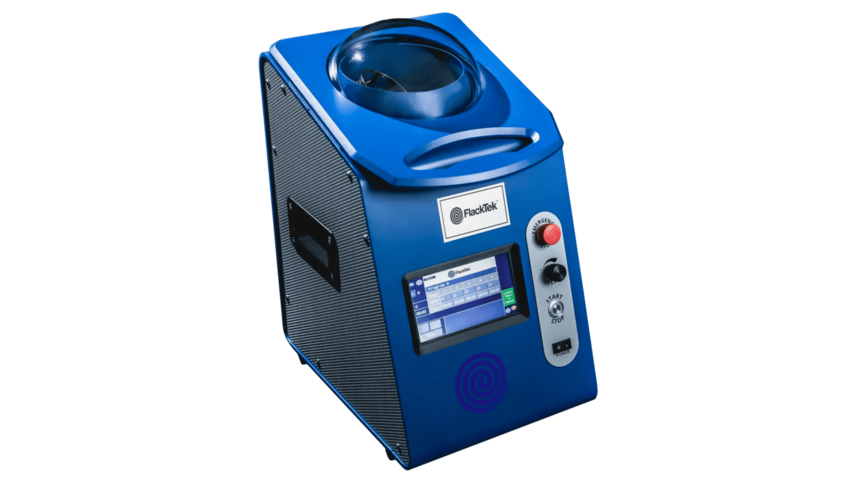

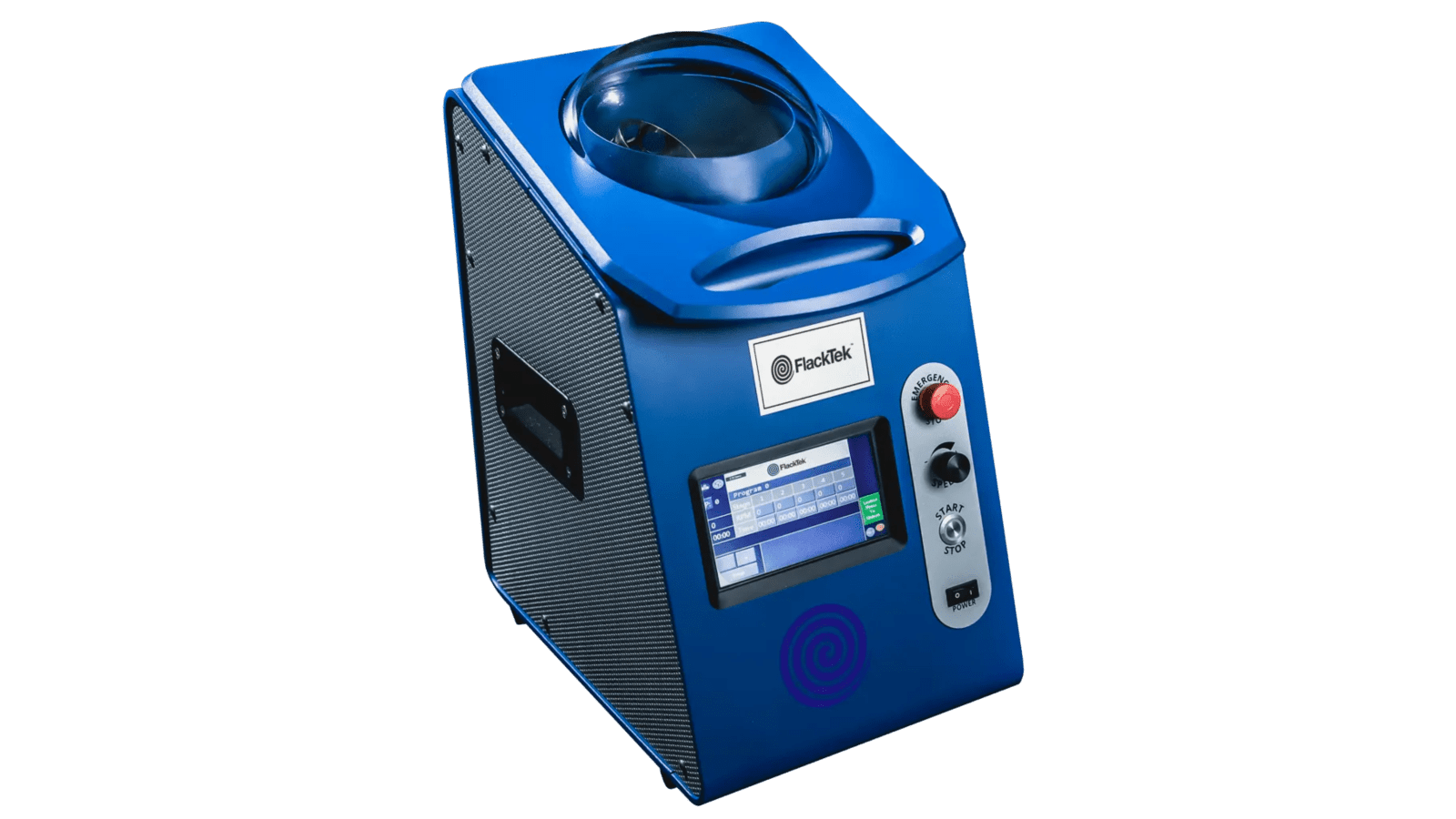

The FlackTek™ is a Dual Asymmetric Centrifugal Mixer, also known as a centrifugal planetary mixer. It operates by rotating an angled container eccentrically around a central axis, while the container spins on its own axis in the opposite direction. This motion is similar to that of a planetary mill however, there a two major differences. The first is the accelerations generated; The FlackTek™ is capable of generating accelerations of up to 800 g (where one g is the acceleration due to gravity), whereas planetary mills can typically only generate up to 50 g. The second is that the two planes of rotation are not parallel as they are in a planetary mill but instead form an angle, which introduces a third dimension of acceleration into the system. It is this third dimension of acceleration (not present in a planetary mill) which enables the use of non-spherical grinding rings and makes SpeedMilling™ possible.
SpeedMilling™ Vs. Ball Milling
Advantages of SpeedMilling™ Over Ball Milling

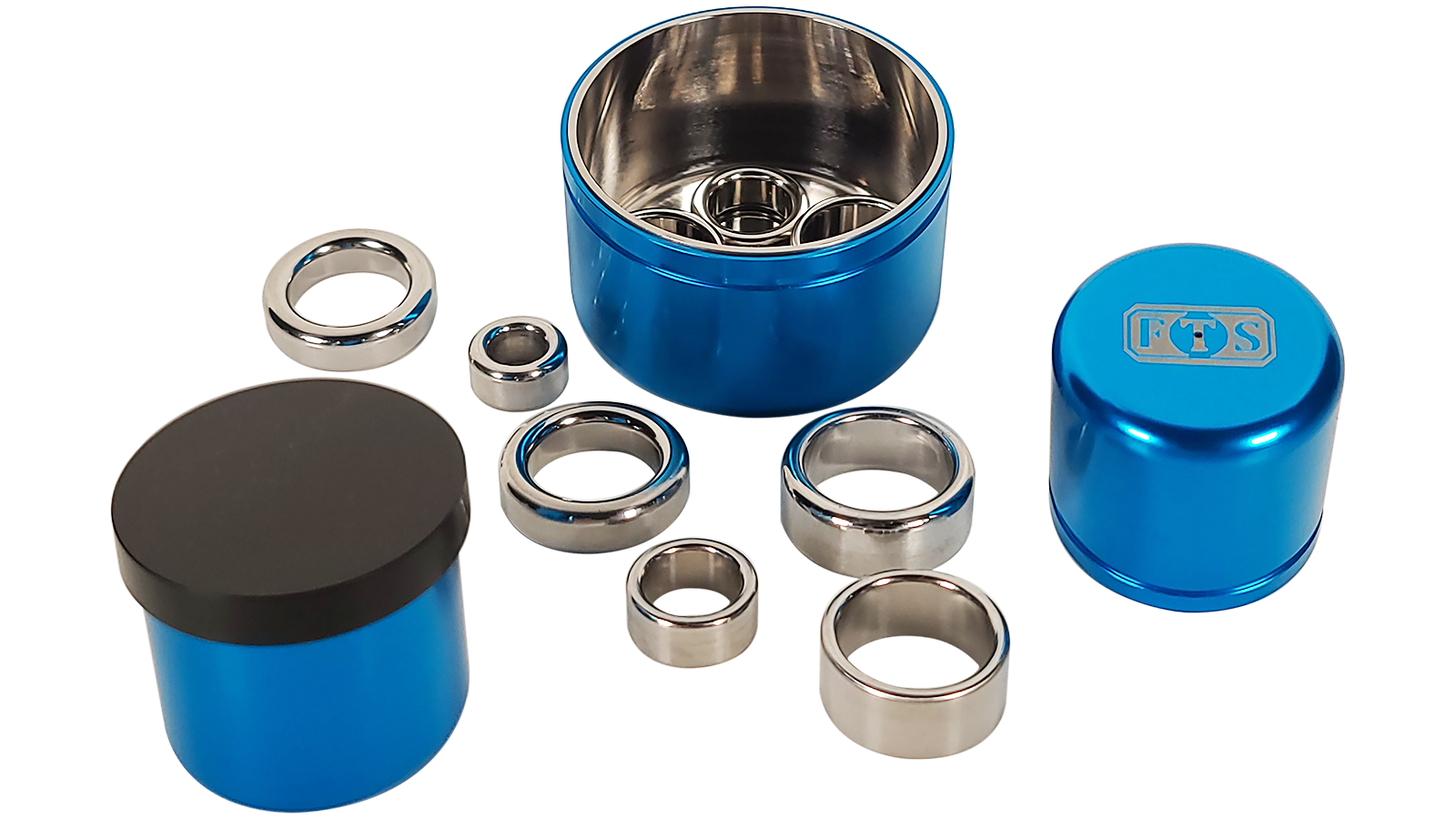

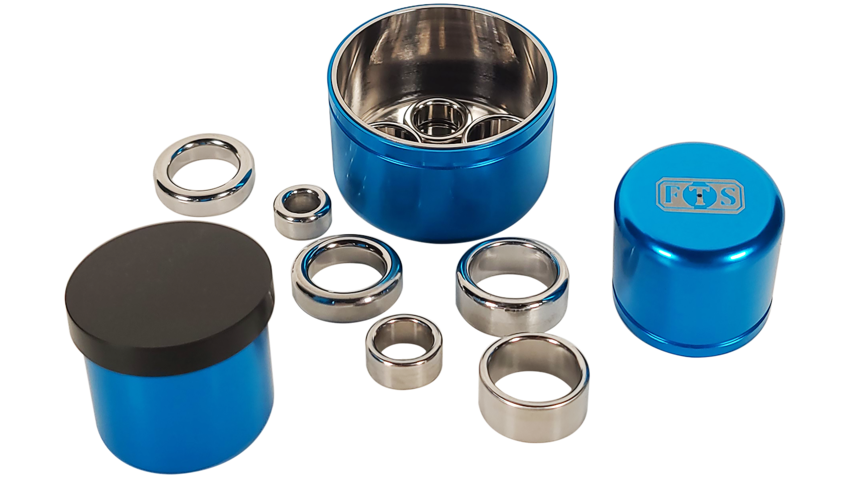

SpeedMilling™ is an entirely new type of milling technology, which utilizes non spherical grinding rings/cylinders instead of traditional spherical grinding balls to rapidly pulverize samples through a combination of high energy impacts and frictional forces.
Higher Surface Area Impacts
Contact between grinding rings or a grinding ring and the wall of the grinding jar result in much higher surface area collisions along a line of contact, rather than at a point of contact, as is instead the case for collisions occurring in a ball mill.
Higher Energy Impacts
It is not is not only the contact surface that is higher in SpeedMilling™, but also the kinetic energy carried by the grinding rings and imparted to the sample at the time of impact. The kinetic energy of a moving object is influenced by two variables; Velocity and Mass.
Higher velocity - The FlackTek™ accelerates the grinding rings to much higher velocities than are achieved in a ball mill by generating up to 800 g of acceleration, compared to the only 50 g produced by a planetary mill.
Higher media mass - In a ball mill, it is typical to compensate for the relatively small point of contact of an individual grinding ball by using tens and often thousands of balls. However, as the number of grinding balls increases, so to must their size and therefore mass decrease, often to fractions of a gram. Because of the much higher contact area of the grinding rings in SpeedMilling™, it is not necessary to sacrifice weight to use a large number of grinding pieces. As such, the average weight of a grinding ring is much higher than that of a grinding ball.
Lower Temperature
The major source of heat during a milling process is due to friction.
Ball milling - For a planetary ball mill, the production of large amounts of friction is intrinsic to its operating principle and can results in temperatures in the range of hundreds of degrees Celsius. Even in a Mixer Mill, which generally uses less grinding media and therefore creates less friction than a planetary mill, temperatures exceeding 100 ºC are not unusual. When using spherical media in a ball mill, the only way to reduce friction is to reduce the number of pieces of media however, this in turn reduces the efficiency of grinding.
SpeedMilling™ - SpeedMilling™ has a unique advantage in that the ratio of frictional to impact forces can be adjusted by modifying the geometry of the grinding media. This is because by utilizing non spherical grinding rings, the surface responsible for the majority of friction and the surface responsible for the impact force are different and do not interchange orientation throughout the grinding process. By making the bottom surface of the grinding ring rounded, the surface contact and therefor the friction generated between the bottom of the grinding ring and the grinding jar is minimized. This reduces the heat generated without affecting the side surface of the ring responsible for impact force. In applications such as mechanochemistry where the generation of elevated temperatures may be desirable, surface contact can be increased to produce more friction and higher temperatures.

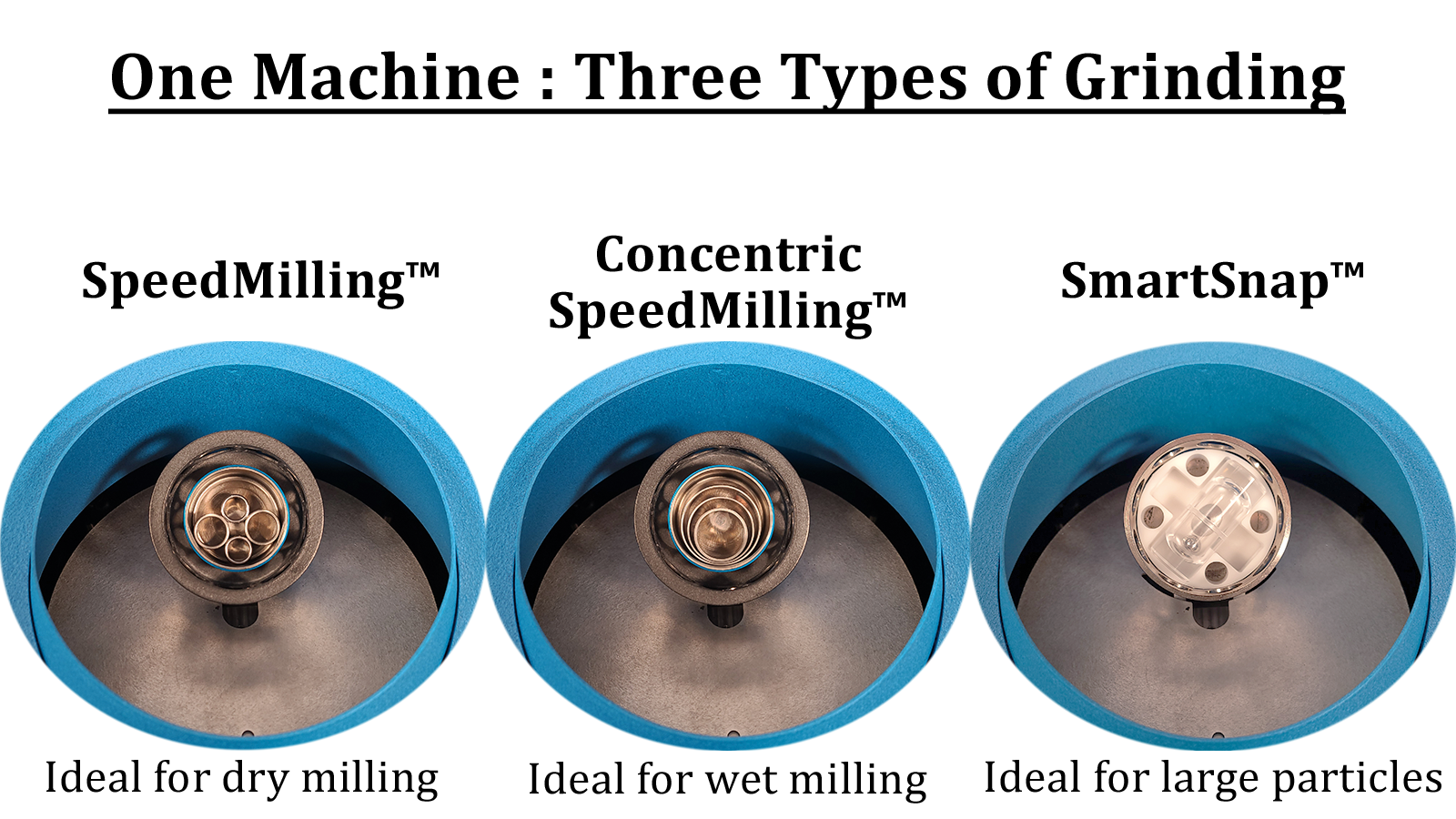

SpeedMilling Vs. Concentric SpeedMilling Vs. SmartSnap
FlackTek™ grinding offers an unmatched level versatility and flexibility by providing users access to three different grinding technologies in a single machine. Each of these three technologies offer different advantages for various materials. This means that when using a FlackTek™, you can always feel confident in having the right tool for any application.
SpeedMilling™
- Ideal for: Dry milling
- Main mode of grinding: Impact force
In this orientation, the grinding rings are placed side by side in the grinding jar. Under the centrifugal accelerations applied by the machine, the rings slide back and forth, colliding both with each other and with the side wall of the grinding jar. These discrete high energy collisions result in rapid size reduction of the sample.

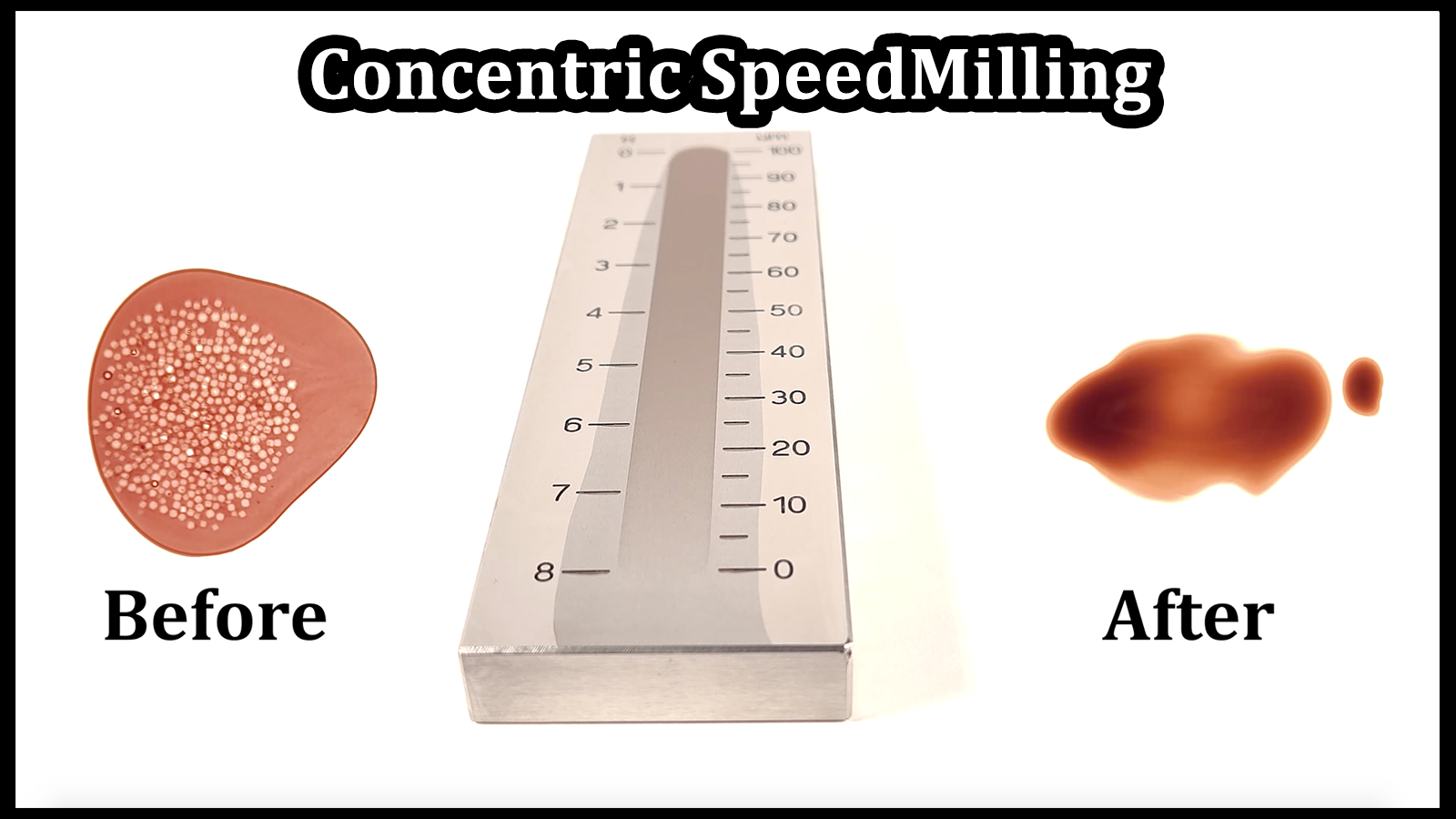

Concentric SpeedMilling™
- Ideal for: Wet milling
- Main mode of grinding: Shear force
In concentric orientation, the rings are placed concentrically in the grinding jar. Under the centrifugal accelerations applied by the machine, the rings move in a rolling motion along the inside surface of the jar. This results in a continuous contact high surface area crushing and shear force applied to the sample as it moves through the contact interface of the rings/ the rings and the side of the jar. In contrast to regular SpeedMilling™, where the rings are side by side, Concentric SpeedMilling results in almost no impact for and as such, can be ideal for sensitive samples.

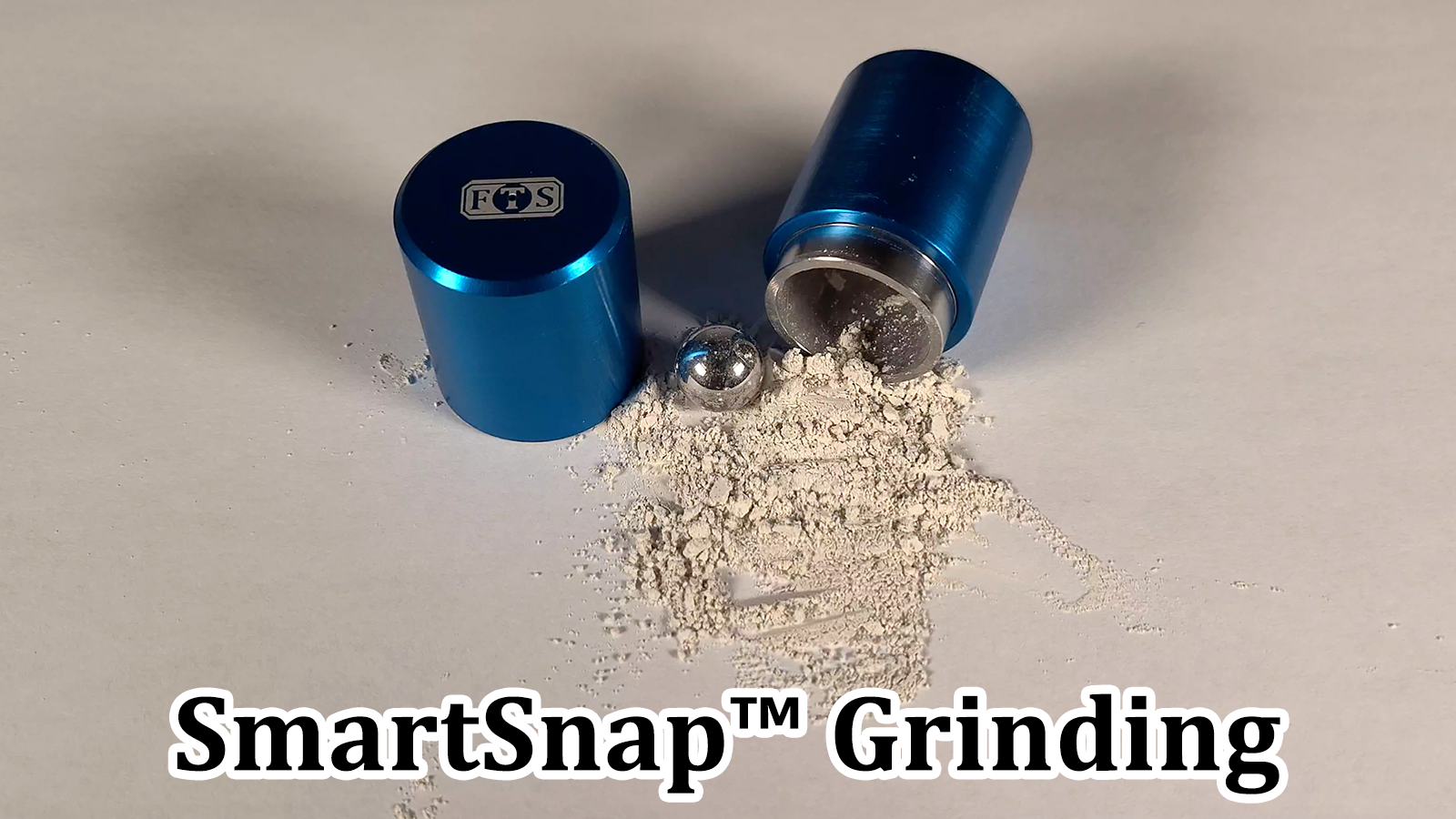

SmartSnap™
- Ideal for: Large starting particle size (up to 25 mm ø)
- Main mode of grinding: Impact & Shear force
This orientation utilizes SmartSnap™ grinding jars and produces a grinding action similar to that of a Mixer Mill. Under the centrifugal accelerations applied by the machine, the grinding ball or balls shoot back and forth within the jar. This leads not only to high impact forces but also to an additional high shear force not present in traditional Mixer Mills due to the angled position of the SmartSnap™ grinding jar in relation to the large eccentric plane of rotation.
Overview
The FlackTek™ is the most advanced piece of laboratory equipment on the market for sample preparation and is capable of grinding, homogenizing, and degassing almost any sample. All FlackTek™ machines are capable of both grinding and homogenization however, this page focusses on particle size reduction and milling applications. For Homogenization and Degassing, click here.
FlackTek™ grinding represents the first true innovation in grinding and milling equipment seen in years. The patented SpeedMilling™ technology harnesses the power of non-spherical grinding rings to create ultra efficient high energy impacts, simply unobtainable via other techniques such as mixer and planetary mills . The unique grinding ring geometries produce higher surface area impacts than traditional spherical grinding media, thereby increasing the probability of trapping/crushing material at the impact site and ultimately, the speed and efficiency of grinding. Combine this with the FlackTek's ability to generate a jaw dropping acceleration of 800 times that of gravity and what you get is the most powerful and efficient laboratory milling machine on the market - Leaving all other mills in the dust.
________________________________________
Machine Highlights
l Versatility: Three Grinding Machines In One
SpeedMilling™
- Ideal for: Dry milling
- Main mode of grinding: Impact force
Concentric SpeedMilling™
- Ideal for: Wet milling
- Main mode of grinding: Shear force
Mixer Mill SmartSnap™
- Ideal for: Large starting particle size (up to 25 mm ø)
- Main mode of grinding: Impact & Shear force
l Built To Last - 100% Made in the USA
l Easy Operation - Large touchscreen and intuitive user interface.
l Efficiency
- Typical grinding times: 30 sec - 2 min
- Grind up to 3 samples at a time.
- Up to 250 nameable and savable standard operating procedures.
- Up to 10 individual grinding zones per program enables the sequential execution of different speeds and times in a single operating procedure.
- Automatic jar clamping - Jars are secured via the intrinsic forces generated by the machine. No more need for tedious screw-type clamps that jam and break over time.
l Energy Input - Heavy grinding rings and extreme centrifugal accelerations of up to 800 times that of gravity make The FlackTek more powerful than any other laboratory mill on the market.
